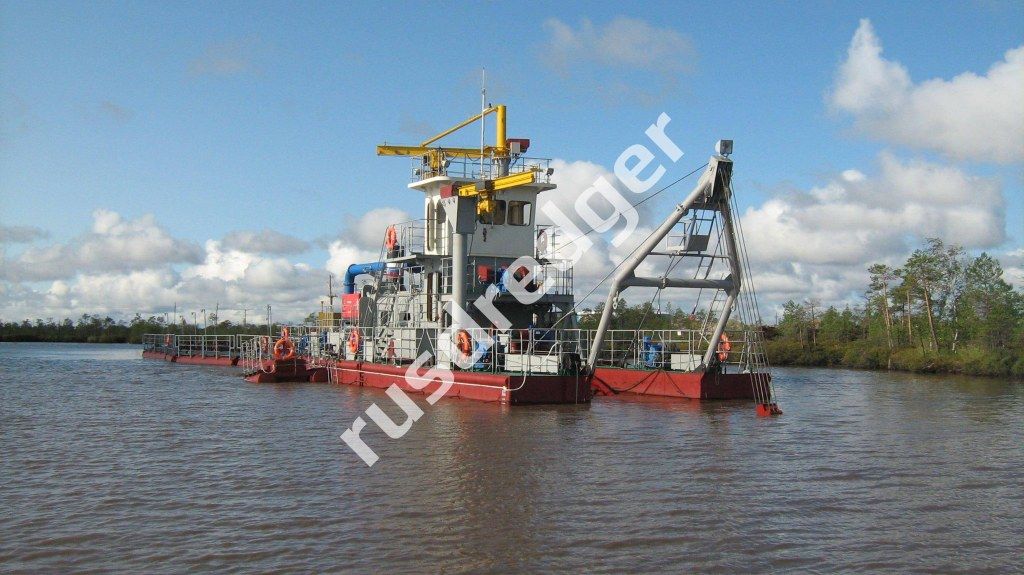

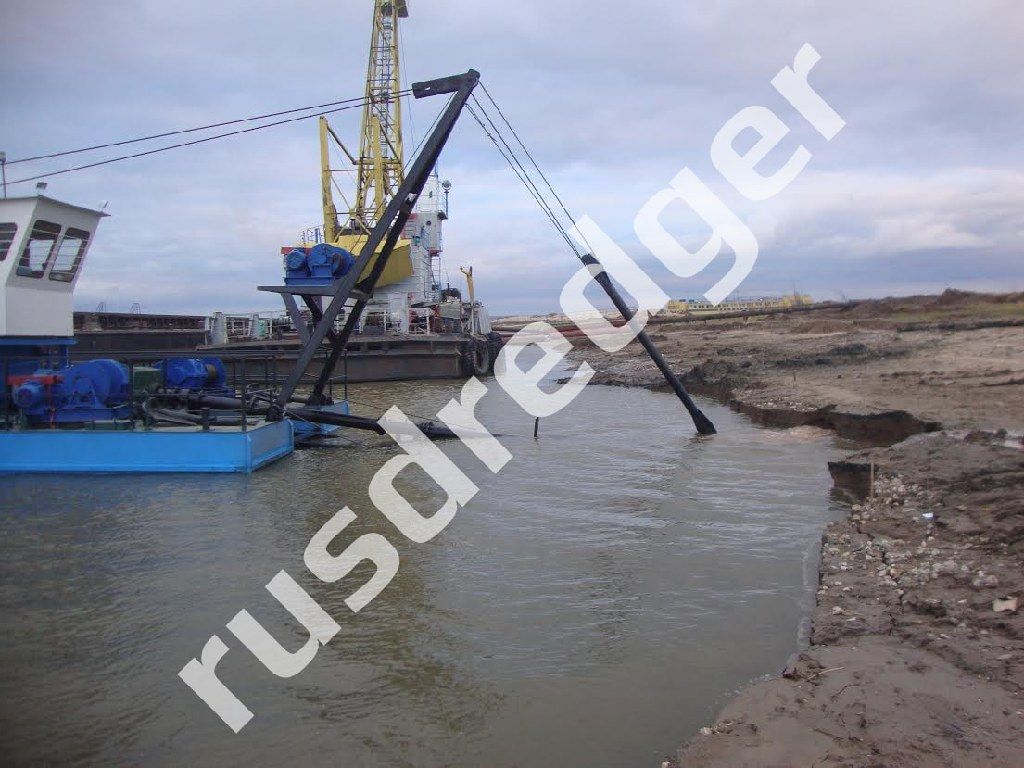

Dredger 2400 by URAL GYDROMECHANICAL PLANT, CJSC

2400 Dredging installation Dredge pump type AH, AHR, HH, L, LR, M, SP, SPR, ZGB, ZGBP Pump flow 2400 cbm/h Pump capacity on dry soil 480 t/h Pump slurry head 70 m Maximum dredging depth 7 m - 25 m Slurry transportation distance 1200 m Suction / discharge pipe diameter 20 in

Read More ∨

Dredger main body characteristics Suction ladder length 12 m - 30 m Board height 1,5 m Minimum steel thickness of dredger hull Central pontoon - side, deck, bulkheads S = 10 mm - bottom S = 12 mm - transom S = 16 mm Side pontoon - bottom S = 8 mm - side, deck, bulkheads S = 6 mm Dredging pump drive - diesel engine Engine brand Russian origin or Caterpillar, MAN, Cummins, Weichai Engine power - minimal 420 kWt (571 h.p.) - optimal 600 kWt (816 h.p.) - maximal 780 kWt (1061 h.p.) Gearbox hydraulic Fuel tank capacity 6 cbm Diesel power station Engine brand installed Russian origin or any on demand Power station capacity - minimal 200 kWt - optimal 300 kWt - maximal 400 kWt Fuel tank capacity 4 cbm Hydraulic auxiliary engine Engine brand installed Russian origin or any on demand Hydraulic station diesel engine capacity - minimal 200 kWt - optimal 300 kWt - maximal 400 kWt Fuel tank capacity 2 cbm Ladder winch Rated pull 200 KN (20 t) Rope speed 18-35 m/min Wire rope capacity 150 m Swing and spud winches - 4 pcs Rated pull 30 KN (3,0 t) Rope speed 18-35 m/min Wire rope capacity 150 m Soil milling equipment types and parameters 1. Waterjet Water head 90 m Water capacity 630 cbm/h 2. Cutter Diameter 1,5 m Hydraulic motor power 350 kWt Auxiliary water pump Water head 80 m Water capacity 100 cbm/h Onboard slurry pipeline fittings Check hatch before slurry pump Flexible suction corrugated tube 1 pcs Turning stern device rubber cloth Rubber expansion joint for slurry pump 2 pcs Installed dredging systems and vessel equipment Counter-landslide setup YES Slurry pump rinsing system YES Outboard boxcooler Double-circuit Ejector nozzle for waterjet milling YES Improved assembly YES Machine room ventilation extract and input Side pontoons drainage system YES Machine room drainage system YES Fire extinguishing system YES Electrical equipment Electric rack 1 Dredger control panel 2 pcs Machine room light points 4 Outside spotlights qt. 2 Optional equipment Electric version dredger with electric driven motors, engines and equipment Dredging efficiency control system Video surveillance system Alarm and equipment malfunction warning system Digital equipment state monitoring system Consistent equipment work automatization Deck crane Piling spuds Electric based drives Ergonomic operator's seat Strengthened hull from marine steel Anticorrosive hull coating from polyurethane
