10x16 elite lofted barn storage building

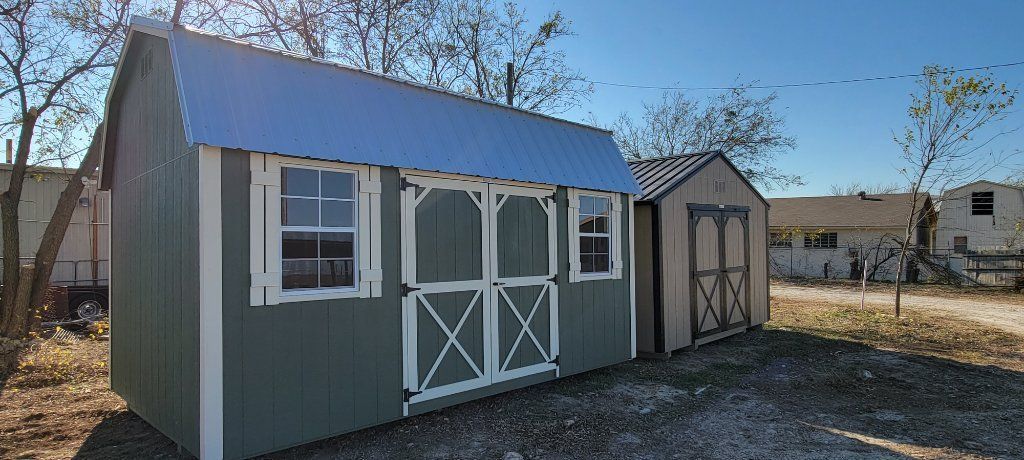

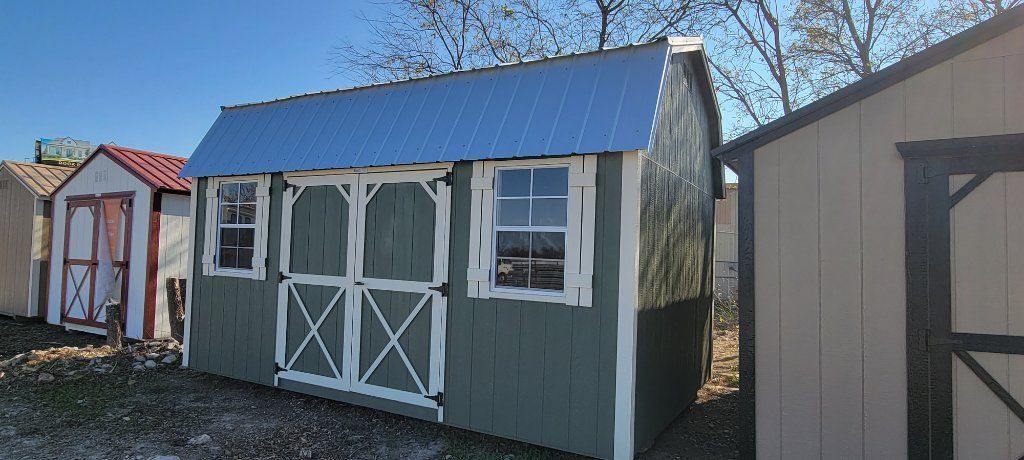

ELITE LOFTED BARN Our Elite package upgrade makes this storage shed extra strong and it helps to keep your things cooler because of our special roofing system. The Elite Lofted Barn gives you the most storage per sq. ft. in a portable storage building and it’s the most popular of all our models because of that. A loft is the perfect place for you to put all of that extra stuff that you may not use as often, up and out of the way and still have space for a work shop, mowers, wheelbarrows and more! Features 4”x6” Pressure Treated Timber Skids 2”x6” pressure treated floor joists 16″ on center 3/4″ BC plywood floor nailed to floor joists with 3” ring shank nails. 6’ 4” (76”) tall side walls. 2”x4” wall studs placed 16″ on center, with double studded corners.

Read More ∨

Double top plate layer – 2”x8” & 2”x4” for extra sidewall and eave strength. 7/16″ LP Smart panel siding with a 50 yr. warranty All nails and joints are caulked and sealed to provide a smooth exterior finish. Two Coats of our 10yr. no fade warranty + 25yr. adhesion warranty, Haley paint. Buildings up to 12’ wides have 2”x4” roof trusses placed 24” on center Buildings 14’ – 16′ wide have 2”x6” roof trusses placed 24” on center Roof trusses plated together with 2-1/4” x 5″ Steel plates 7/16″ SolarBoard technology keeps the building cooler in summer, replacing OSB. Complete 4″ overhang Drip edge on roof Synthetic felt on top the SolarBoard to seal the roof 30 yr. dimensional shingles, or choose the 40 yr. metal roof Vented Ridge 8” x 16″ end wall vents 16′ long buildings receive two 4′ deep lofts 20′ or longer buildings receive two 8′ deep lofts Two 2’ x 3’ windows with shutters Door Threshold made from Diamond Plated Steel 6’ x 6’ Double Door Call or text 8one7 8one9 eighteen17
